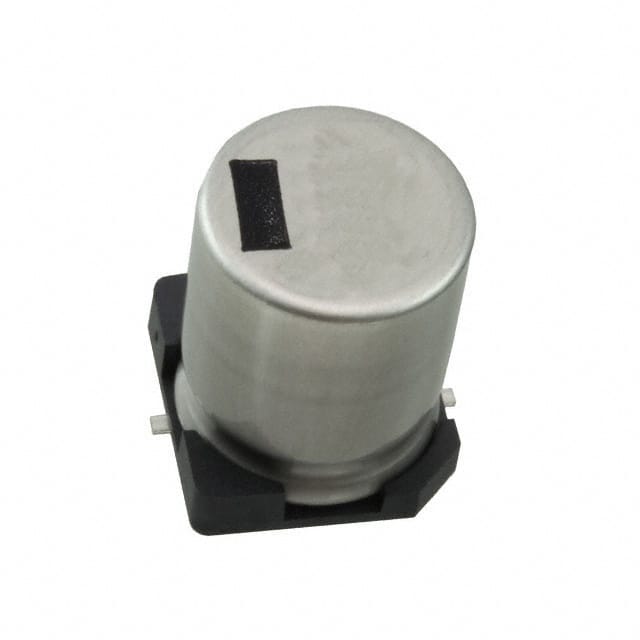

25TGV820M12.5X16 product image

Image shown for reference. Confirm specifications in the datasheet.

Product details

25TGV820M12.5X16

Availability on request

Manufacturer: Rubycon
Category: Aluminum Electrolytic Capacitors
Package: Tape & Reel (TR), Cut Tape (CT), Digi-Reel®

Description

820 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 74mOhm @ 100kHz 5000 Hrs @ 125°C

Datasheet View datasheet

Specifications

Applications: Automotive
Capacitance: 820 µF
ESR (Equivalent Series Resistance): 74mOhm @ 100kHz
Height - Seated (Max): 0.650" (16.50mm)
Lead Spacing: -
Lifetime @ Temp.: 5000 Hrs @ 125°C
Mfr: Rubycon
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C
Package: Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Package / Case: Radial, Can - SMD
Polarization: Polar
Ratings: AEC-Q200
Ripple Current @ High Frequency: 1 A @ 100 kHz
Ripple Current @ Low Frequency: 600 mA @ 120 Hz
Series: TGV
Size / Dimension: 0.492" Dia (12.50mm)
Surface Mount Land Size: 0.512" L x 0.512" W (13.00mm x 13.00mm)
Tolerance: ±20%
Voltage - Rated: 25 V
