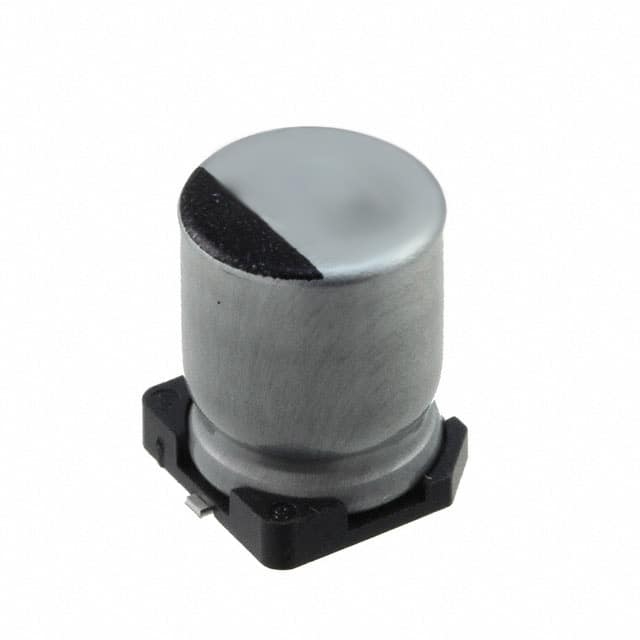

25SEV220M8X10.5 product image

Image shown for reference. Confirm specifications in the datasheet.

Product details

25SEV220M8X10.5

Availability on request

Manufacturer: Rubycon
Category: Aluminum Electrolytic Capacitors
Package: Tape & Reel (TR), Cut Tape (CT), Digi-Reel®

Description

220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C

Datasheet View datasheet

Specifications

Applications: Automotive
Capacitance: 220 µF
ESR (Equivalent Series Resistance): -
Height - Seated (Max): 0.413" (10.50mm)
Lead Spacing: -
Lifetime @ Temp.: 2000 Hrs @ 85°C
Mfr: Rubycon
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Package: Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Package / Case: Radial, Can - SMD
Polarization: Polar
Ratings: AEC-Q200
Ripple Current @ High Frequency: 360 mA @ 10 kHz
Ripple Current @ Low Frequency: 300 mA @ 120 Hz
Series: SEV
Size / Dimension: 0.315" Dia (8.00mm)
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Tolerance: ±20%
Voltage - Rated: 25 V
