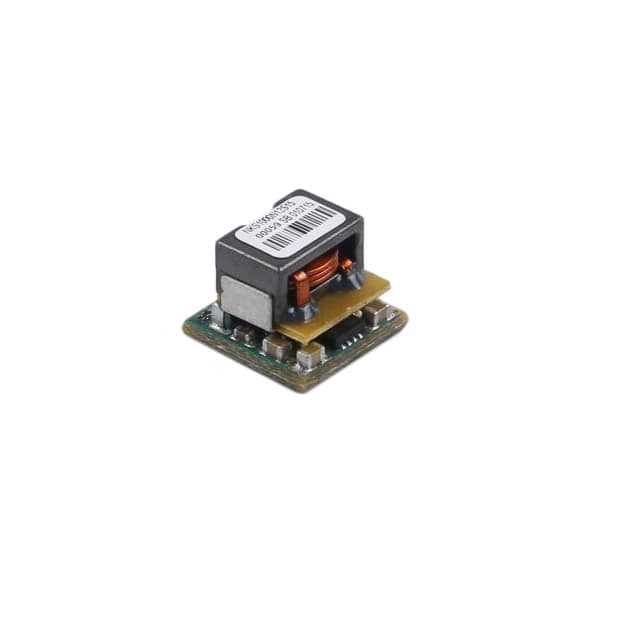

BMR4614001/001 product image

Image shown for reference. Confirm specifications in the datasheet.

Product details

BMR4614001/001

Availability on request

Manufacturer: Flex Power Modules
Category: DC DC Converters
Package: Tape & Reel (TR), Cut Tape (CT), Digi-Reel®

Description

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 18A 4.5V - 14V Input

Datasheet Not provided

Specifications

Applications: ITE (Commercial)
Approval Agency: CB, CSA, IEC, TUV, UL
Base Product Number: BMR461
Control Features: Enable, Active Low
Current - Output (Max): 18A
Efficiency: 91.6%
Features: Adjustable Output, PMBus™, Remote On/Off, Remote Sense
Mfr: Flex Power Modules
Mounting Type: Surface Mount
Number of Outputs: 1
Operating Temperature: -40°C ~ 120°C (With Derating)
Package: Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Package / Case: 32-BLGA Module
Power (Watts): 32 W
Series: BMR461 (60W)
Size / Dimension: 0.48" L x 0.48" W x 0.31" H (12.2mm x 12.2mm x 8.0mm)
Standard Number: 62368-1
Supplier Device Package: -
Type: Non-Isolated PoL Module, Digital
Voltage - Input (Max): 14V
Voltage - Input (Min): 4.5V
Voltage - Output 1: 0.6 ~ 1.8V
Voltage - Output 2: -
Voltage - Output 3: -
Voltage - Output 4: -
